Sustainable Power Unit

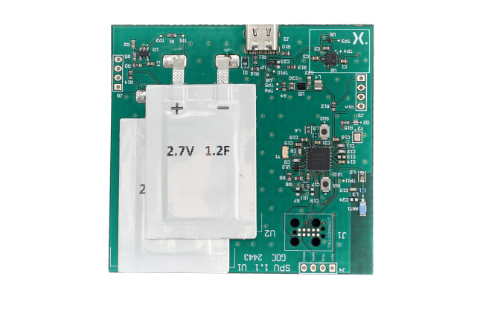

The Sustainable Power Unit makes use of natural resources as a mean to power electronics in an eco-responsible manner. With energy harvesting at its core -powered by Nexperia’s NEH2000BY Power Management IC-, the unit uses ambient energy (light) to power a bio-based supercapacitor which in turn allows a humidity and temperature sensor to transmit data via Bluetooth. The board is entirely recyclable, allowing to further reduce e-waste.

Sustainable Power Unit - Ligna, Epishine and Jiva

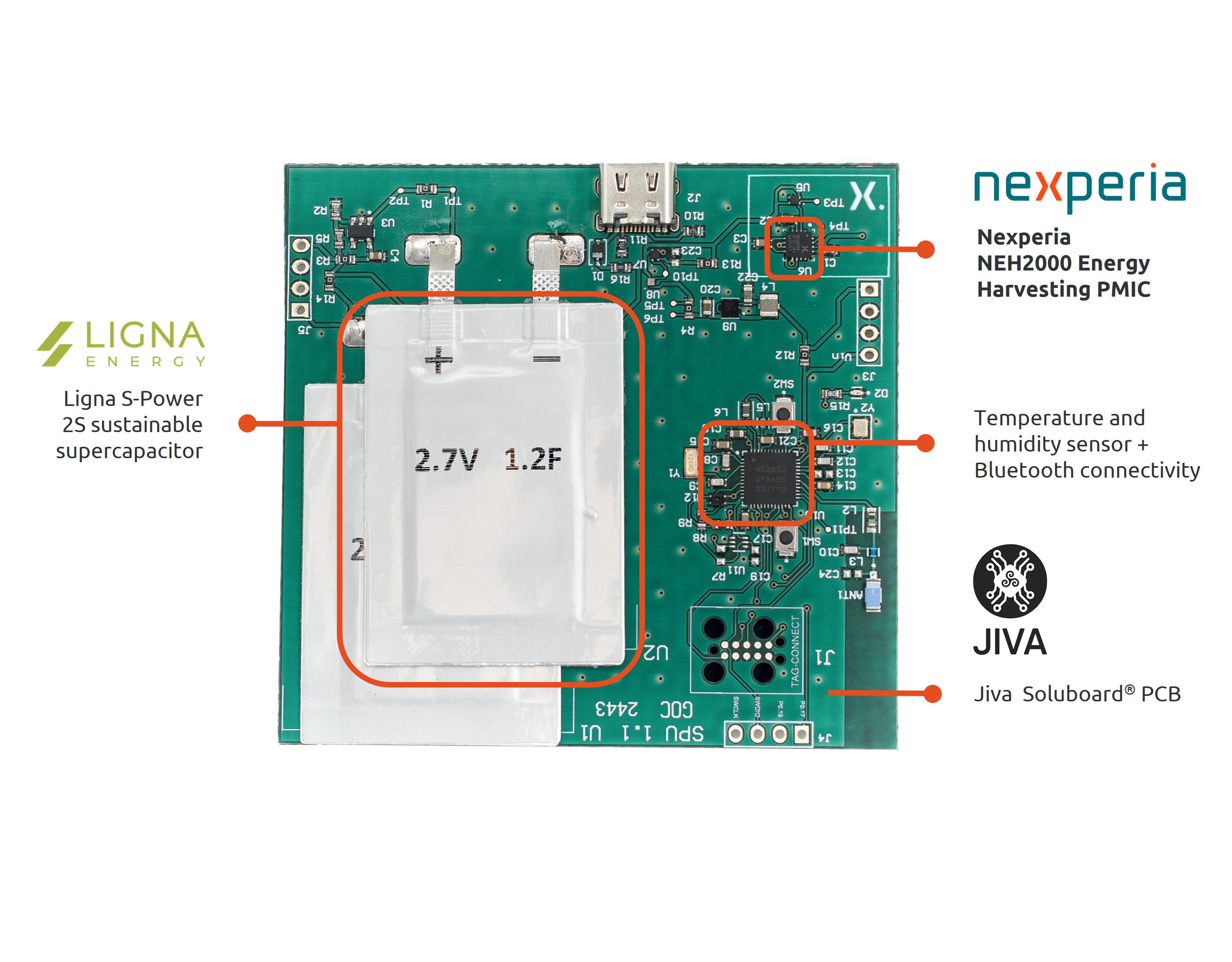

Key features and benefits

• Nexperia NEH2000BY Power Management IC, harvesting energy from ambient sources to power the board and reduce the need for battery replacement
• Epishine organic solar cells to harvest low energy ambient light
• Ligna's S-Power 2S sustainable supercapacitor made of bio-organic materials, without any toxic chemicals, PFAS or metals such as lithium

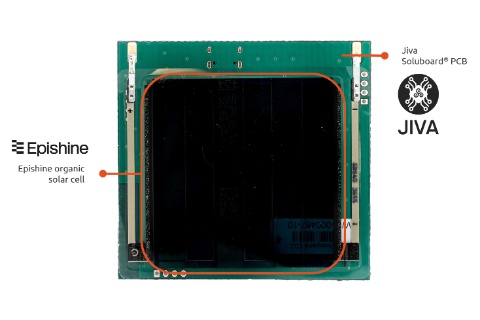

• Jiva's Soluboard PCB, produced using the world's first fully recyclable printed circuit board substrate with more than a 60% lower carbon footprint than market incumbents
• This version of the Sustainable Power Unit includes a temperature and a humidity sensor as well as Bluetooth connectivity to transmit the sensor data to, for example, a mobile device or fixed communication node.

Target applications

• Low-power electronics with limited battery life. e.g. sensors
• Space-constrained applications due to the inductorless design of NEH2000BY, the small-size factor of Ligna's supercapacitor and ultra-thin organic solar cell from Epishine
• IoT sensor devices for Proptech applications, asset tracking or food safety control



More information

Ligna Energy supercapacitors
Jiva Materials PCB
Epishine PV cells

板上的產品 (1)

Type number Description Status Quick access
NEH2000BY Energy harvesting PMIC Production

板上的產品 (1)

Type number Description Status Quick access
NEH2000BY Energy harvesting PMIC Production
